5GigE Area scan camera JAI GOX-12405M-5GE | GOX-12405C-5GE JAI GOX-12405M-5GE | GOX-12405C-5GE
5GigE Camera
Sony IMX545 Sensor
4128x3008 Resolution
Area Scan Camera

get a quote for this product

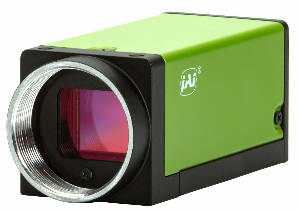

The JAI GOX-12405M-5GE (monochrome) | GOX-12405C-5GE (color) 5GigE camera features a Sony IMX545 1/1.1" sensor with 12.4 megapixel resolution at 43 frames per second, and a 2.74 µm pixel size.

JAI 5GigE cameras feature 4th Generation Sony Pregius sensors, backside illumination (BSI) for low noise and high light sensitivity. The cameras are GigE Vision compliant. The interface recognizes the network capacity and automatically adjusts to 2.5GBASE-T or 1000BASE-T speeds.

JAI GO Series and GOX Series GigE, USB3, CoaXPress, and camera link cameras feature CMOS technology, low-noise pixels, global shutters, sequencer functions, and other advanced features that ensure image quality and excellent performance at a great price/performance ratio.

JAI Go Series / Go-X Series Family Features

  • 2.35 to 5MP on 2/3" to 1" format
  • 2/3" to 1" format CCD
  • Up to 165 fps
  • Lowest cost models

GOX-12405M-5GE | GOX-12405C-5GE Camera Features

  • Sony Pregius 4th Generation IMX545 1/1.1" 12.4 megapixel sensor
  • GigE Vision compliant
  • 43 fps at 4128x3008 resolution
  • 2.74 µm pixel size
Manufacturer: JAI Model: GOX-12405M-5GE
GOX-12405C-5GE
Total Pixels: 12,417,024
Resolution: 4128 (h) 3008 (v) Sensor Size: 1/1.1" Color/B & W: Color / Monochrome
Frame Rate (fps): 43 Sensor Type: CMOS Sensor Device: Sony IMX545
Pixel Size(µm): 2.74(h) 2.74(v) A/D Bits: 12 Shutter Speed: 3.5 µs to 8 sec
Interface: 5GigE Voltage(VDC): 10-25V Power(watts): 5.4
Lens Mount: C Shutter Type: Global Weight(grams): 94
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 68Lx29Wx29H
